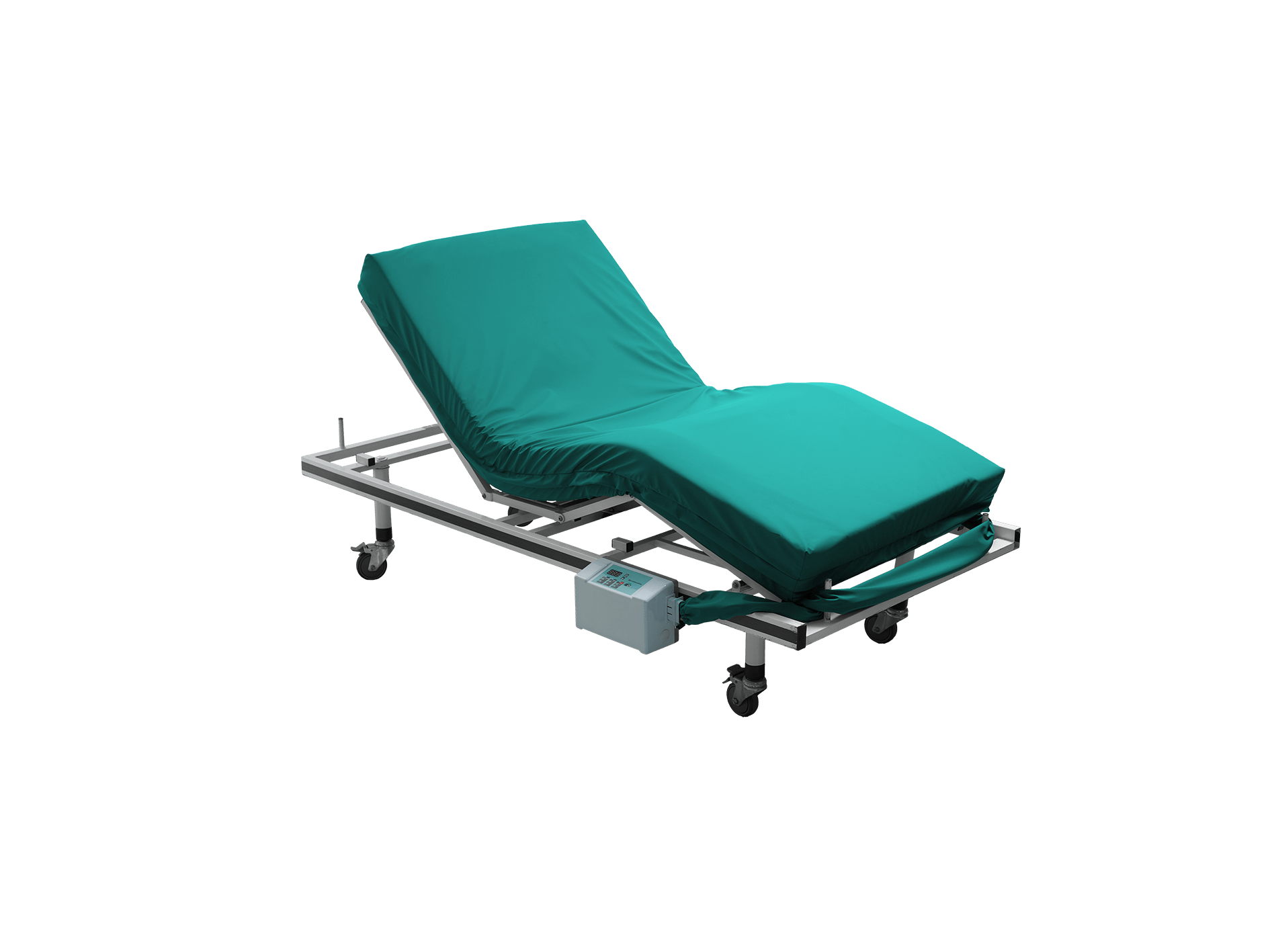

AIRFOAM/M1

The AIRFOAM line combines a static stage II and a dynamic stage IV solution in one. The flattened shape of the cell structure in the AIRFOAM systems allows for the weight to be distributed over a larger area, thus reducing the pressure on the skin.

Product Features:

  • Maximum patient weight: 250 kg
  • Patient weight settings: regulator adjustable 40 – 250 kg
  • Replacement mattress system
  • Three-chamber-system (A;B;C)
  • Allows pressure adjustment to suit the requirements of patients’ needs
  • The choice for static or alternating pressure therapy therefore useable in a large variety of illnesses
  • Cycle times: 5, 10 , 20 selectable
  • Acoustic and optical alarm
  • Very low noise and vibration thanks to building in AVS (Anti-Vibration-System)
  • Low energy consumption
  • Easy to operate
  • Patient transport function
  • CPR valve prevents accidental opening.
  • 10 individually exchangeable cells.
  • 3 loops for cell fixation.
  • fixation straps to adjustable bed parts.
  • Includes breathable, Water repellent, stretchable PU-cover with 3-sided zipper for easy removal. Washable at up to 95 °c, dryable at up to 50 °c.
  • Special sizes available on request.
  • Including transport bag.

product video

product specification

ARTICLE-NUMBERAIRFOAM; M1
MATTRESS DIMENSIONS (INFLATED)L2000 X W850 X H12.5 MM
WEIGHTMATTRESS: 9.8 KG; PUMP: 2,8 KG; COVER: 0,45 KG
MATTRESS MATERIALTPU; FOAM
COVER MATERIALPU (POLYURETHANE)
PUMP DIMENSIONL260XW125XH170MM
PUMP HOUSINGABS HOUSING
PUMP CYCLE TIME5 , 10 , 20 SELECTABLE
LED INDIDICATORAUTOMATING FUNCTION; STATIC FUNCTION; AUTO FIRM FUNCTION ; PRESSURE FAILURE; POWER FAILURE; SETTING FAILURE
ALARMVISUAL & ACOUSTIC ALARM
ELECTRICAL VALUES220 V ; 50 HZ/7 W; FUSE 500 MA/SLOW
AIR OUTPUT≤ 8 LPM
CLEANINGCOVER WASHABLE AT UP TO 95 °C, DRYABLE AT UP TO 50 °C
RECOMMENDED PATIENT WEIGHT40 - 250 KG
APPLICATION AREAULCER PREVENTION ; THERAPY SUPPORT FOR MEDIUM TO HIGH RISK STAGE IV

The content is for reference only, and our company reserves the right to change specifications and designs.

向右滑動查看更多 -->
modelload cap.(kg)pressure stageheight (cm)width (cm)mattress type
stage II stage III stage IV foamair8090100replacementoverlay
MA1925M/M1250OO O513 OOO
NUY418BF/B1140O-10OOO
NUT520ZS/M1150OO-13OOO
KUT820ZS/M1200OOO520OOO
AIRFOAM/M1250OOO123OOOO
